CLBO: CsLiB6O10
Composition：CLBO(CsLiB6O10）Crystals (Caesium lithium borate)
Advantages
- Short cut off Wavelength (180nm)
- Large Angle Tolerance
- Small Walk-off Angle
- No Saturation for High-Power Generation
- Superior harmonic generator in UV region (4HG & 5HG of Nd:YAG, Shortest Type I SHG:237nm)
- High bulk laser damage threshold (>1.7 times higher than fused quartz @266nm)
- Large d coefficient:d36(532nm)=0.92pm/V ⇒Good for high-power UV applications
Advantages compared to BBO
- High conversion efficiency due to small walk-off
- Wider transparent range: 180～2750nm ⇒Particularly suited to DUV generation

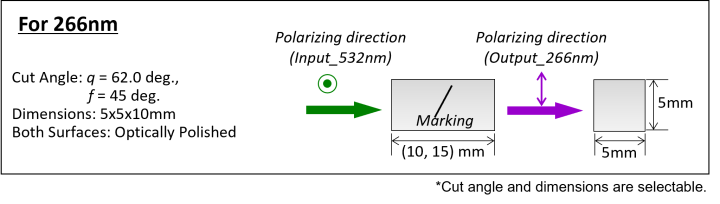

Typical Specifications
Application
Machining, Micro Processing, Semiconductor Inspection, Bio-Medical, UV-LIDAR
Properties & Sellmeier’s Equation
| Wavelength (nm) |
NLO Crystal | Phase Matching Angle (deg) |
deff (pm/V) |
Angle Tolerance (mrad – cm) |
Walk-off Angle (deg) |
| 1064+532 =355 |
CLBO | 48.9 | 0.71 | 0.92 | 2.11 |
| BBO | 34.6 | 2.01 | 0.24 | 4.47 | |
| 532+532 =266 |
CLBO | 62.0 | 0.79 | 0.55 | 1.84 |
| BBO | 47.7 | 1.75 | 0.19 | 4.89 | |
| 1064+266 =213 |
CLBO | 68.3 | 0.95 | 0.48 | 1.66 |
| BBO | 51.1 | 1.95 | 0.13 | 5.51 |
Remark: PMT = 150 degree-C @CLBO, 27 degree-C @BBO
