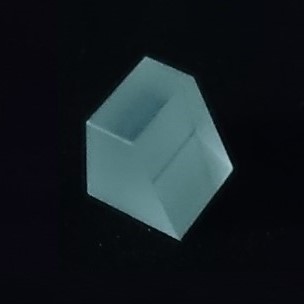

Mg:SLN Prism
Mg:SLN Prism -Key Device for THz Generation-
<Advantages>
- Easy setup for THz Generation
- Wide THz bandwidth(0.2~2.5 THz)
- Low Defect Density
- High damage threshold

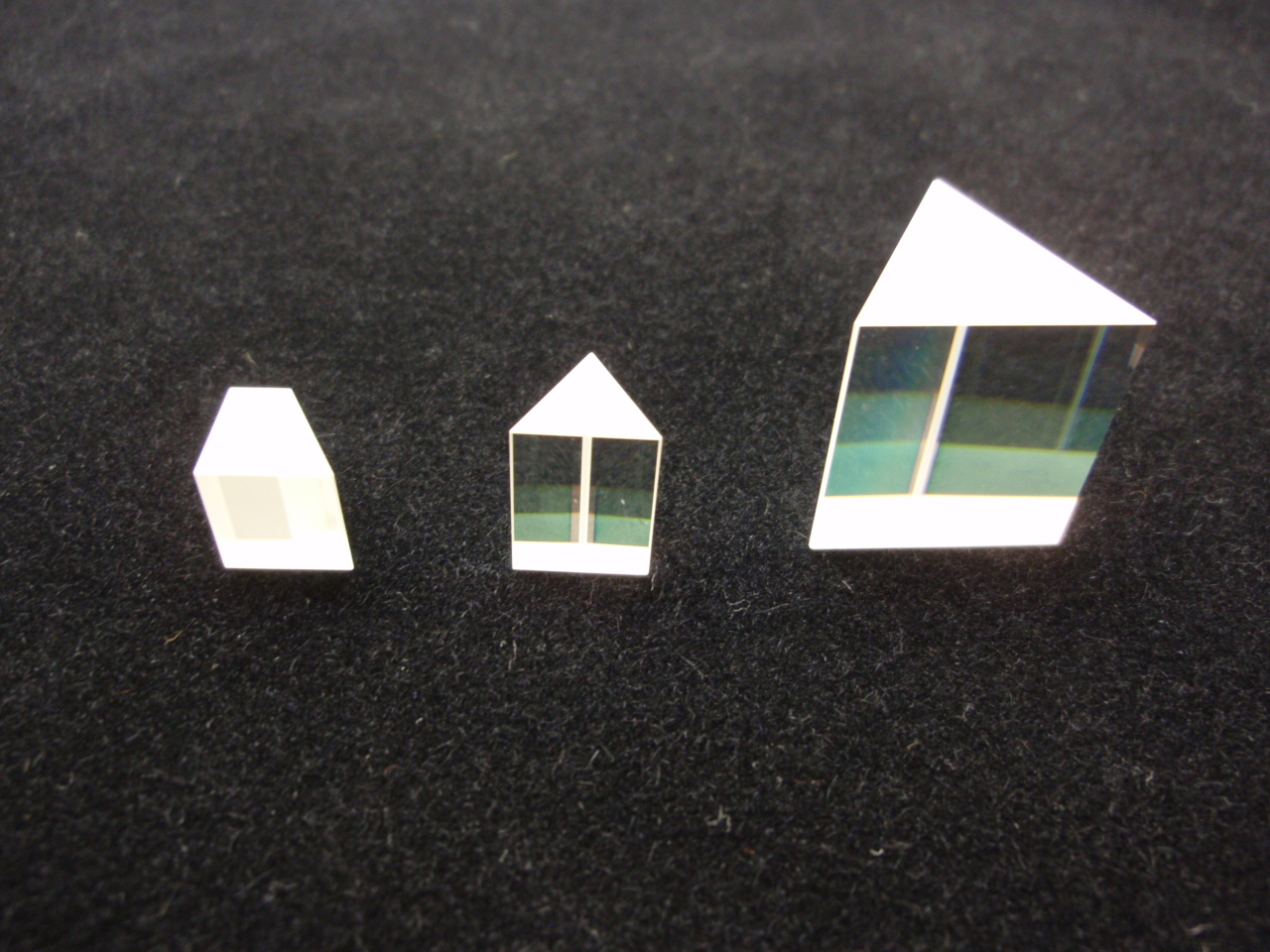

<Products>

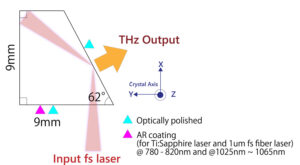

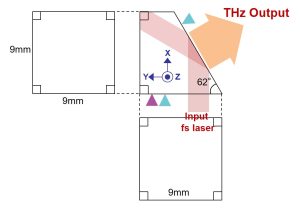

| Standard Type1 (Basic) | |||
 |
 |
Size | 9ｘ9ｘ9mm3 |
| AR coat | @780-820nm and @1025-1065nm | ||

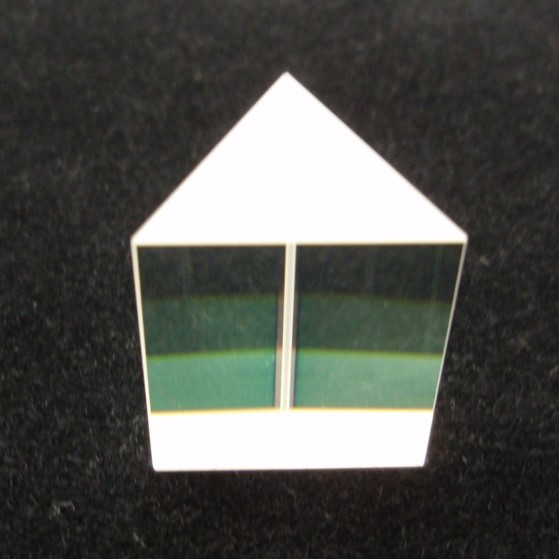

| Strandard Type2 (High Power) Better performances at high average input power due to the residual power dumped outside of the prism. |
|||
 |
 |
Size | 10ｘ10ｘ12.5mm3 |
| AR coat | @780-820nm and @1025-1065nm | ||

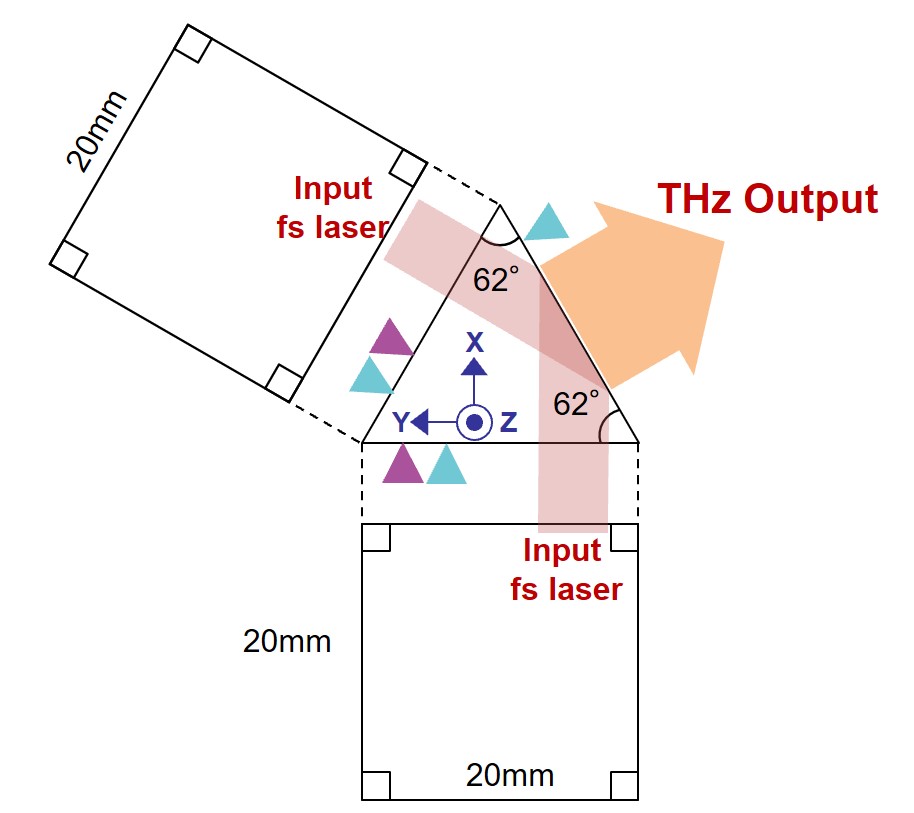

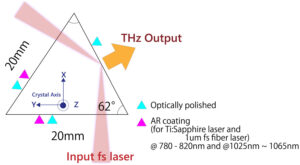

| Strandard Type3 (Large Aperture) | |||
 |
 |
Size | 20ｘ20ｘ20mm3 |
| AR coat | @780-820nm and @1025-1065nm | ||
＜Application example references.＞
Ref. 1: M. Nagai, M. Jewariya, Y. Ichikawa, H. Ohtake, T. Sugiura, Y. Uehara, and K. Tanaka, “Broadband and high power terahertz pulse generation beyond excitation bandwidth limitation via χ(2) cascaded processes in LiNbO3”, OPT. EXPRESS 18, 11543-11549 (2009).
Ref. 2: F. Blanchard, X. Ropagnol, H. Hafez, H. Razavipour, M. Bolduc, R. Morandotti, T. Ozaki, and D. G. Cooke, ” Effect of extreme pump pulse reshaping on intense terahertz emission in lithium niobate at multimilliJoule pump energies”, OPT. LETT. 39, 4333-4336 (2014).
Technical Documents:
MgSLN Prism_ 20241025.pdf
MgSLN Prism_ 20241025.pdf
